Solder Paste vs Flux: Powerful Guide for Pros

Let’s get the answer for solder paste vs flux. If you’ve ever tried fixing electronics or doing DIY soldering, you’ve likely heard of solder paste and flux. When I first worked on circuit boards, I didn’t know the difference either. But trust me, knowing how they work can make your soldering much better. Both help create strong, working joints, but in different ways.

Solder paste is a must for surface mount technology (SMT). Flux helps clean and prep the metal before soldering. If you’ve had weak joints or messy solder, the problem might be how you used one or both of them.

In this guide, I’ll explain everything simply. You’ll learn what solder paste and flux are, how they’re different, when to use each, and how to apply, store, and clean them. If you’re just starting or trying to improve, this guide will help. By the end, you’ll know how to pick and use the right one for any solder job.

What Is Solder Paste?

Definition and Core Components

Solder paste is a thick, gray mix. It has tiny metal bits and flux mixed together. It sticks to metal pads and melts during soldering. It acts like glue and solder at the same time—great for reflow soldering.

The paste has a metal mix (like tin, silver, or lead) and a flux binder. The metal helps with the joint. The flux helps it flow and stick. The amount of metal and flux matters. It helps get even, solid results, especially in SMT work.

[Insert table: Composition of common solder paste types (metal alloy % vs flux %)]

Typical Applications (SMT, Reflow)

Solder paste is often used in surface mount technology (SMT) and reflow soldering. When I work on PCBs, I put the paste on the pads with a stencil. Then I place the parts and heat the board. The paste melts and makes solid joints.

This method works well for:

• Making lots of electronics
• Putting parts in the right place
• Clean, fast joints

It might feel tricky at first. But once you learn, it makes things much easier.

Learn more about reflow soldering from Analog Devices.

What Is Solder Flux?

Definition and Purpose (Oxide Removal, Wetting)

Solder flux is a cleaning liquid used before and during soldering. It removes oxidation from metal. This helps solder stick better. When I started, I skipped flux once. The joints looked fine, but they were weak. I learned the hard way.

Flux also helps wetting. This means the melted solder spreads well. It makes shiny, strong joints. Without it, the solder may not stick right. This can cause problems later.

Types of Flux

There are different kinds of flux. The right one depends on your job and how clean you want the board.

Rosin-Based (Type R, RMA, RA)

• R (Rosin): Soft cleaner. Good for clean places.
• RMA (Rosin Mildly Activated): Medium strength. Leaves less mess.
• RA (Rosin Activated): Strong cleaner. Leaves more mess to clean.

These are great for basic soldering and are easy to use with old-school tools.

No-Clean

Use this if you don’t want to clean after soldering. It leaves little mess. That mess is safe to leave on most boards.

Water Soluble

This one cleans well. But you must wash it off with water. I use this when I want a super clean finish. Just know it adds one more step.

When and Why Each Type Is Chosen

Here’s how I choose:

• No-clean flux: For fast jobs or when I can’t clean
• Water-soluble flux: For high-end work or delicate parts
• Rosin-based flux: For normal soldering if I can clean later

Each type helps solder stick better in its own way. For deeper info, check this NASA guide to flux selection.

Next up, I’ll show you how solder paste and flux compare. That way, you’ll never get confused again.

Key Differences Between Solder Paste and Flux

When I started, I used to think solder paste and flux were the same. But they are very different. Here’s how:

• Composition:
  Solder paste has tiny metal balls mixed with flux. Flux, on the other hand, is just a chemical cleaner.
• Physical Form and Handling:
  Solder paste is thick and sticky. Flux is usually a liquid or gel. Paste needs cool storage. Flux is easier to store.
• Application Methods:
  I use stencils or dispensers for solder paste. For flux, I brush it on or spray it, depending on the job.
• Typical Use Cases:
  Solder paste is best for reflow soldering. That’s when I heat the board and the paste melts to form joints.
  Flux is great for hand soldering and touch-ups. It helps the solder flow better.

Here’s a quick side-by-side view:

Application Techniques

1. Solder Paste

Stencil Printing

I often use a metal stencil to print solder paste on pads. It’s fast and neat. I press paste across the stencil with a tool. The paste goes only where it’s needed.

Automated Dispensing

When I can’t use a stencil, I use a dispenser. It drops paste in small dots. This works great for tiny parts or when the layout is odd.

Reflow Profile Basics

After placing parts on the paste, I heat the board in a reflow oven. It follows a heat plan—called a profile. It melts the paste, then cools slowly. This gives strong solder joints.

2. Solder Flux

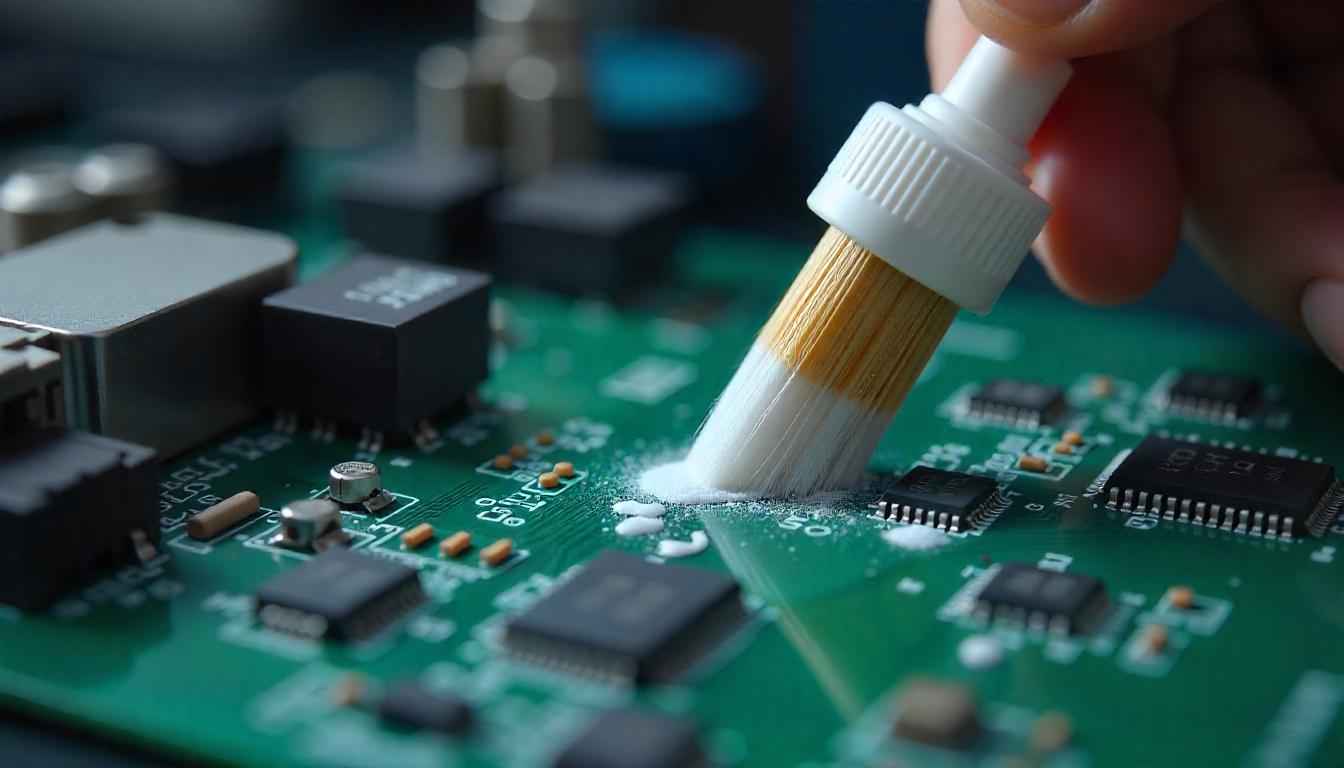

Manual Brushing

Sometimes I brush on flux by hand. This works when I fix a joint or add more solder. It’s easy and quick.

Spray/Nozzle Application

For big boards, I use a spray bottle or nozzle. This is used in wave or selective soldering. It spreads flux evenly.

Best Practices to Avoid Excess Flux

Too much flux can leave sticky spots. I always apply just a thin layer. After soldering, I check and clean any leftover.

Choosing the Right Material: When to Use Solder Paste vs Flux

Picking the right one depends on the project. Here’s what I look at:

Project Scale
If I’m making one board or testing, I use flux and hand soldering.
For mass builds, I go with solder paste and reflow.

Component Type
Solder paste works well with SMD parts.
For through-hole parts, flux and wire solder are better.

Clean Room or Lab Work
Some labs need clean boards. Then I choose water-soluble flux and clean after.
If cleaning isn’t allowed, I use no-clean flux or a good solder paste.

Here’s a quick guide to help choose:

Storage and Handling Best Practices

I’ve learned to store solder materials the right way to keep them fresh.

Shelf Life
Solder paste has a short shelf life—usually 3 to 6 months. Flux lasts longer but still needs care. Always check the label.

Temperature Control
I store solder paste in the fridge (4–10°C). Flux is okay at room temp but should stay cool and dry.

Rework Guidelines
Once paste is open, I use it soon. I don’t reuse old paste. For flux, I use clean tools and never dip them into the bottle.

Avoid Moisture and Air
I keep lids tight. If moisture gets in, paste won’t stick right, and flux may not clean well. Oxidation also ruins the mix.

Cleaning and Removing Flux Residues

Cleaning is key—especially if I use rosin or water-based flux.

Why Cleaning Matters
Leftover flux can cause corrosion or leakage. Even “no-clean” flux may leave spots that attract dirt.

Solvent Choices
I use isopropyl alcohol (IPA) or special flux cleaners. Water-soluble flux needs warm water. I avoid hard scrubbing.

Step-by-Step Cleaning Process

• Wait till the board cools.
• Dip a soft brush in IPA.
• Gently scrub the flux spots.
• Wipe with a clean cloth or swab.
• Let it dry fully before powering up.

When “No-Clean” Is Truly No Clean
Some no-clean flux is safe to leave. But I always check for white stains or sticky areas. If I see them, I clean anyway.

Impact on Joint Reliability & Quality Control

Good soldering is about more than just melting metal. If you want strong, clean joints, you have to understand how flux and solder paste affect the final result.

Let’s start with the role of flux. The strength of the flux—called its activity level—helps remove oxidation. That’s great, but if the flux is too strong, it can cause fast chemical reactions. These reactions lead to something called intermetallic formation. When this happens too quickly, the joint becomes brittle. Over time, it can crack or fail.

I usually go with mild flux for fine or sensitive parts. It’s strong enough to clean but gentle enough to avoid damage. Stronger flux is useful too, but only if I’m ready to clean up afterward.

Now let’s talk about defects. Voids are tiny air pockets inside the joint. Bridges happen when solder connects two pads that shouldn’t be connected. And cold joints appear dull and weak because the solder didn’t melt properly. These problems often come from poor technique—like using too much or too little paste, skipping cleaning, or rushing the job.

To catch these issues, I inspect every board I work on. I start with a bright light and a magnifier. A good joint should be shiny and smooth. If I’m working with hidden parts like BGAs, I rely on X-ray inspection. This helps me see what’s going on inside the joint. In a factory setting, people also use shear testing to measure joint strength. I don’t use that at home, but it’s common in pro labs.

The goal is always the same—clean, strong, and reliable joints that work the first time and last a long time.

Frequently Asked Questions

What is the most common type of flux when soldering?

Most people, including myself, use Rosin Mildly Activated flux, also known as RMA. It works well, cleans gently, and leaves minimal residue. It’s my go-to for hand soldering.

Can solder paste be used as flux?

No, it shouldn’t be. Solder paste is meant for reflow soldering. It contains metal powder, so it doesn’t flow like regular flux. If you’re hand-soldering or fixing joints, stick with liquid or gel flux.

Can plumbing flux be used on electronics?

Definitely not. Plumbing flux is way too harsh for delicate circuit boards. It can damage copper pads and leave behind residues that corrode over time. Always use flux made for electronics.

How long does solder paste last once opened?

It depends on storage. I always keep mine in the fridge, and it usually stays good for 3 to 6 months. If it dries out, changes color, or smells strange, I throw it away and open a fresh one.

What is no-clean flux, and when should I clean residues?

No-clean flux leaves only a small amount of residue, and that residue is safe in most cases. But if the board will be used in a hot, dirty, or sensitive place, like medical gear or aerospace parts, I clean it anyway. A little extra cleaning can save a lot of trouble later.

Conclusion

By now, you know how important it is to use solder paste and flux the right way. These two materials do more than just make solder stick. They help you build clean, solid joints that last.

Solder paste works best for surface mount parts and reflow soldering. It has both metal and flux, so it sticks to pads and flows well when heated. Flux alone is used more in hand soldering. It cleans metal, removes oxidation, and helps solder flow smoothly.

Always pick the right material for your job. For quick fixes, I use no-clean flux. For delicate or pro-level work, I go with water-soluble or rosin types. I store everything in cool, dry places and mark open dates. I clean up when needed, and I inspect every joint before powering up.

These small steps make a big difference. Whether you’re a beginner or already soldering like a pro, knowing how to choose, apply, and care for solder paste and flux will give you better results every time.

Stay sharp, take your time, and keep learning. Soldering is a skill, and with the right tools and a little practice, you’ll get better with every project.
